ER series single screw pump

Features：

- R series single screw pump on the basis of the H series, with a special pump body and a special screw to promote the connecting shaft, can transport high viscosity paste and difficult to pump the medium or the medium containing solid material (dry medium content up to 60%);

- the pump body is equipped with a large hopper, which is suitable for conveying non - mobile media when the slag fluid is transported with high concentration;

- can be configured all kinds of drivers, especially suitable for the gear reducer motor;

- small mechanical vibration, no pulsation, smooth operation.

Performance

- maximum pressure: single stage 0.6MPa

- double 1.2MPa

- four 2.4MPa

- maximum flow 120m3/h

- maximum temperature 150

- maximum viscosity: 1X107cst

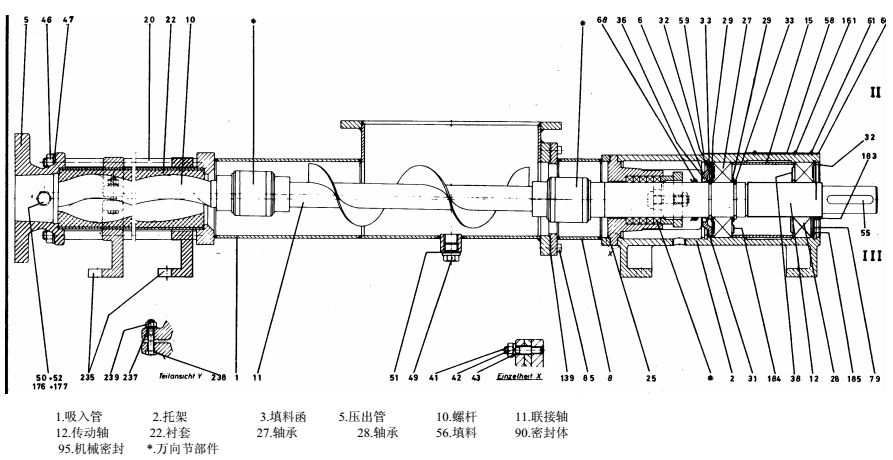

Construction：

Construction elucidation：

ranges eccentric helical rotor pump have been developed from the basic range , and on the universal joint a screw conveyor is mounted transporting also media which hardly to flow into the handling elements. In the case of highly concentrated sludge the pump casing can be supplemented by an elevation funnel with various squeezing or crushing arrangement that avoid suction failure, this arrangement has to be adapted in its design to the media handled. Thus, the actual crushing elements can assume different forms. All other parts of the standard construction are from the assembly of prefabricated machine part. Pumps can be combined with drive engines of all kind; three-phase-gear-motors are preferred.

Application:

ER ranges for pumping:

Food mill: To handle spirit or wine, waste residue and addition in brewery.

Taxi mill: To handle synthetic foible liquid viscose liquid.

Paper making: To handle black pulp.

Chemical industry: To handle suspended liquid, emulsion liquid, aide liquid ,soda liquid and salt liquid .

Build industry: To handle the mort or and plaster.
